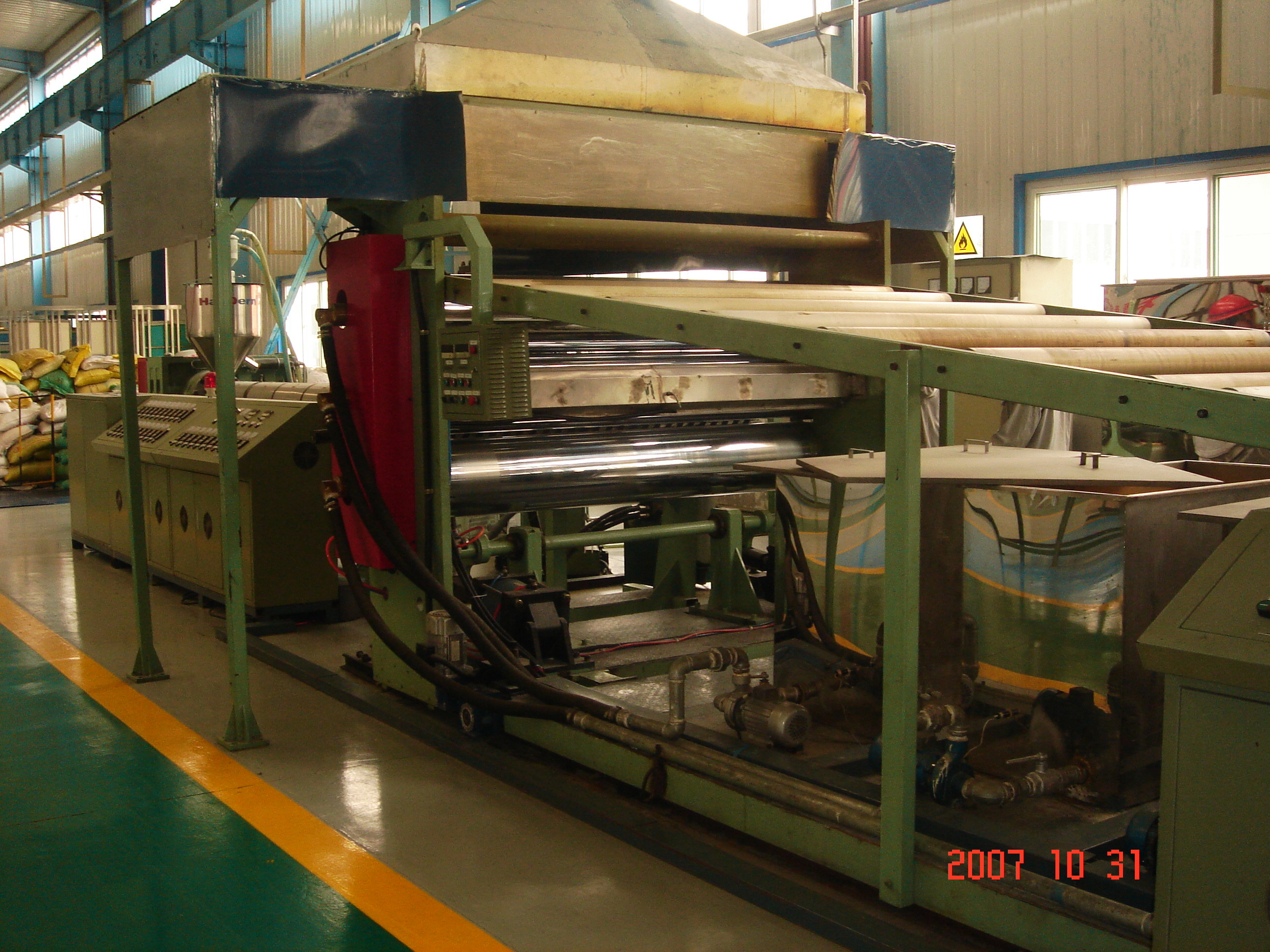

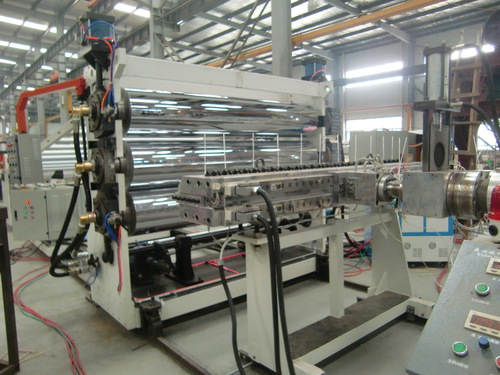

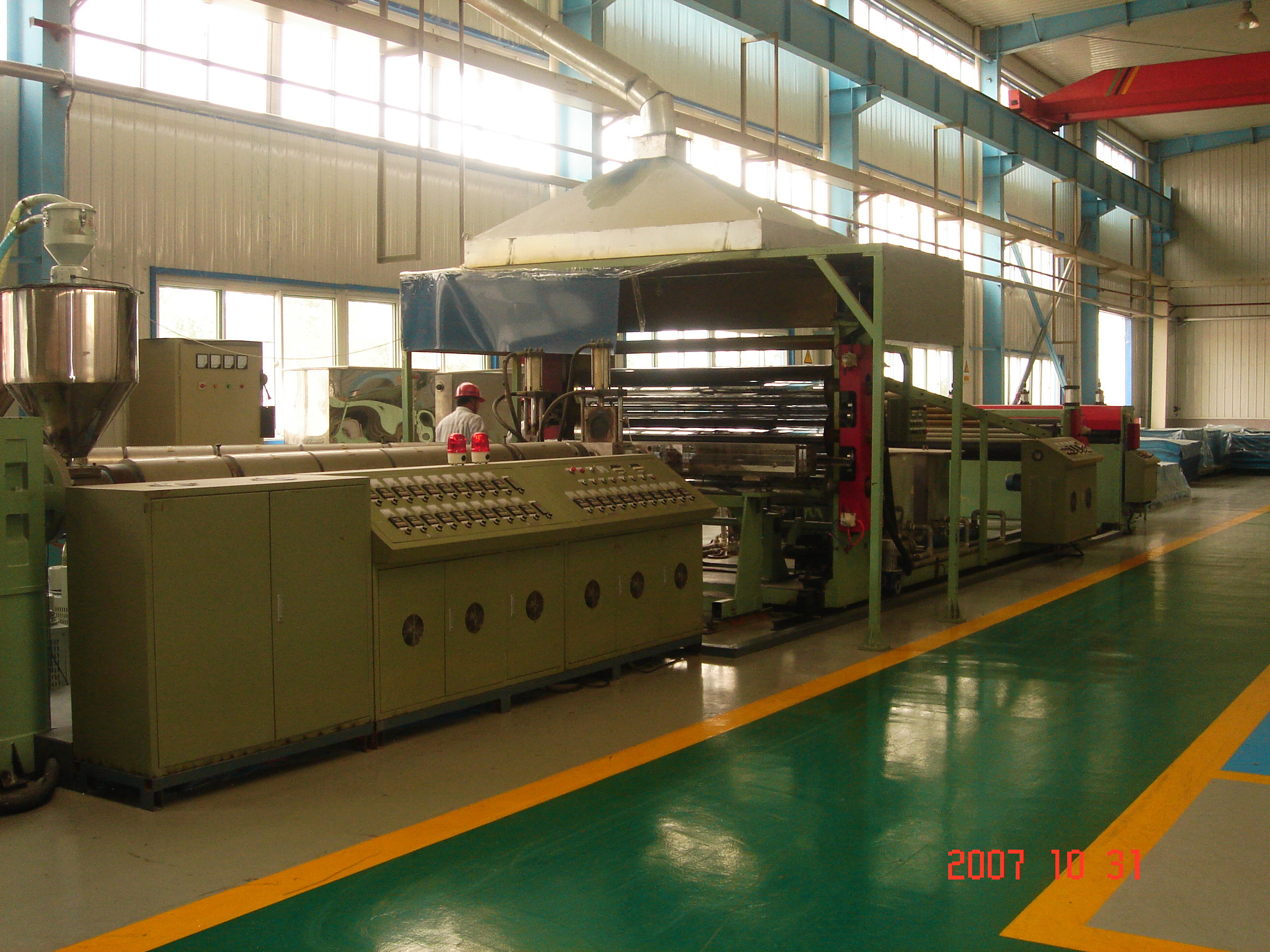

Single layer Multi layer co extrusion board equipment

Product Description

Product introduction

This series includes 23 and 5layer co extrusion sheet plate lines It is suitable for the production of PE PP PS ABS PVC PC PMMA pet etc

Product range

Width 600mm3000mm

Thickness 020 mm10 mm 1060 mm plate 520 mm thick plate

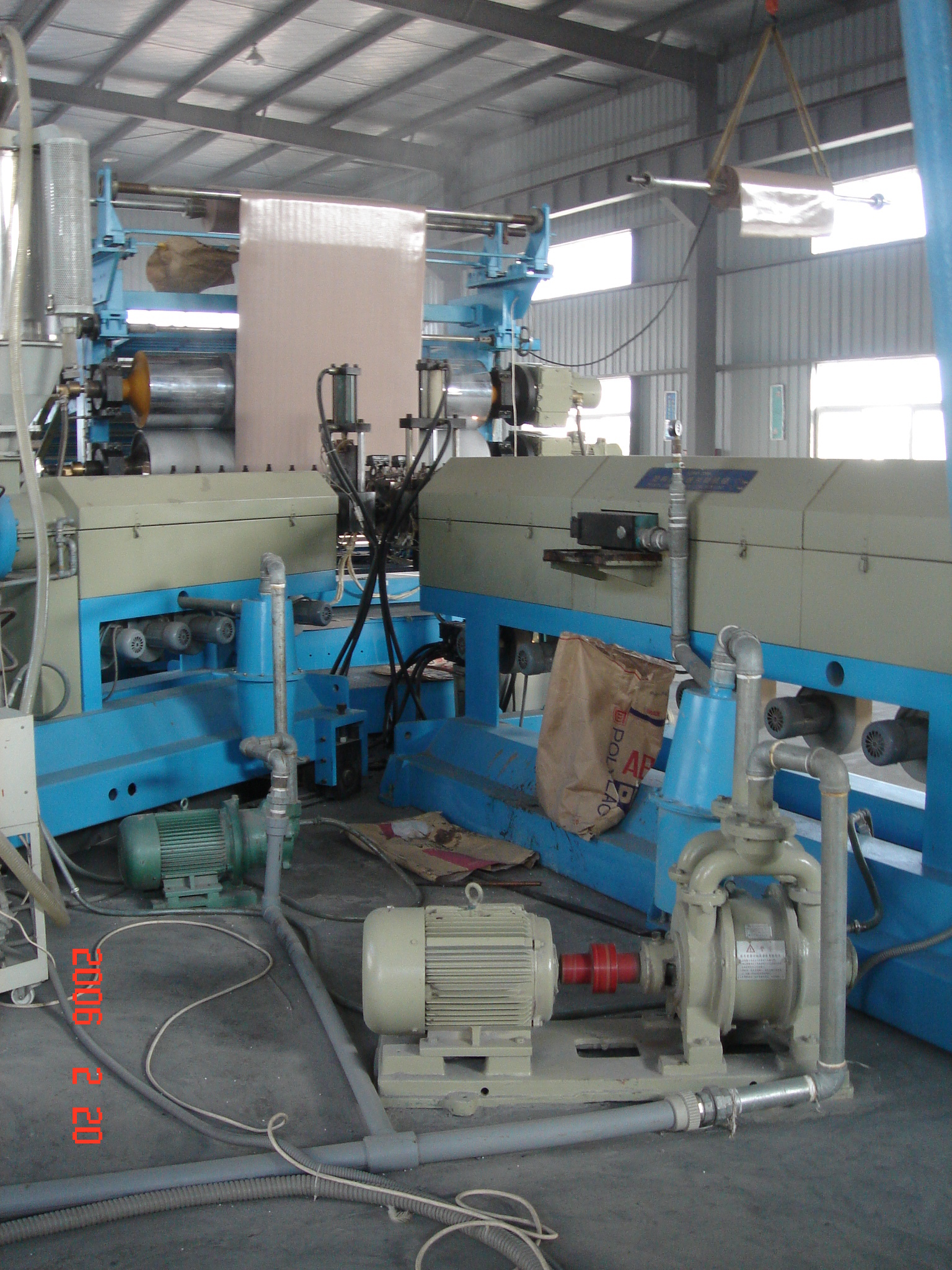

New design screw extruder line with market demands and adapt to many kinds of raw materials with the advantages of good plasticizing uniform distribution and high output

Hydraulic pressure screen exchange short course of changing screen and stable operation of operators

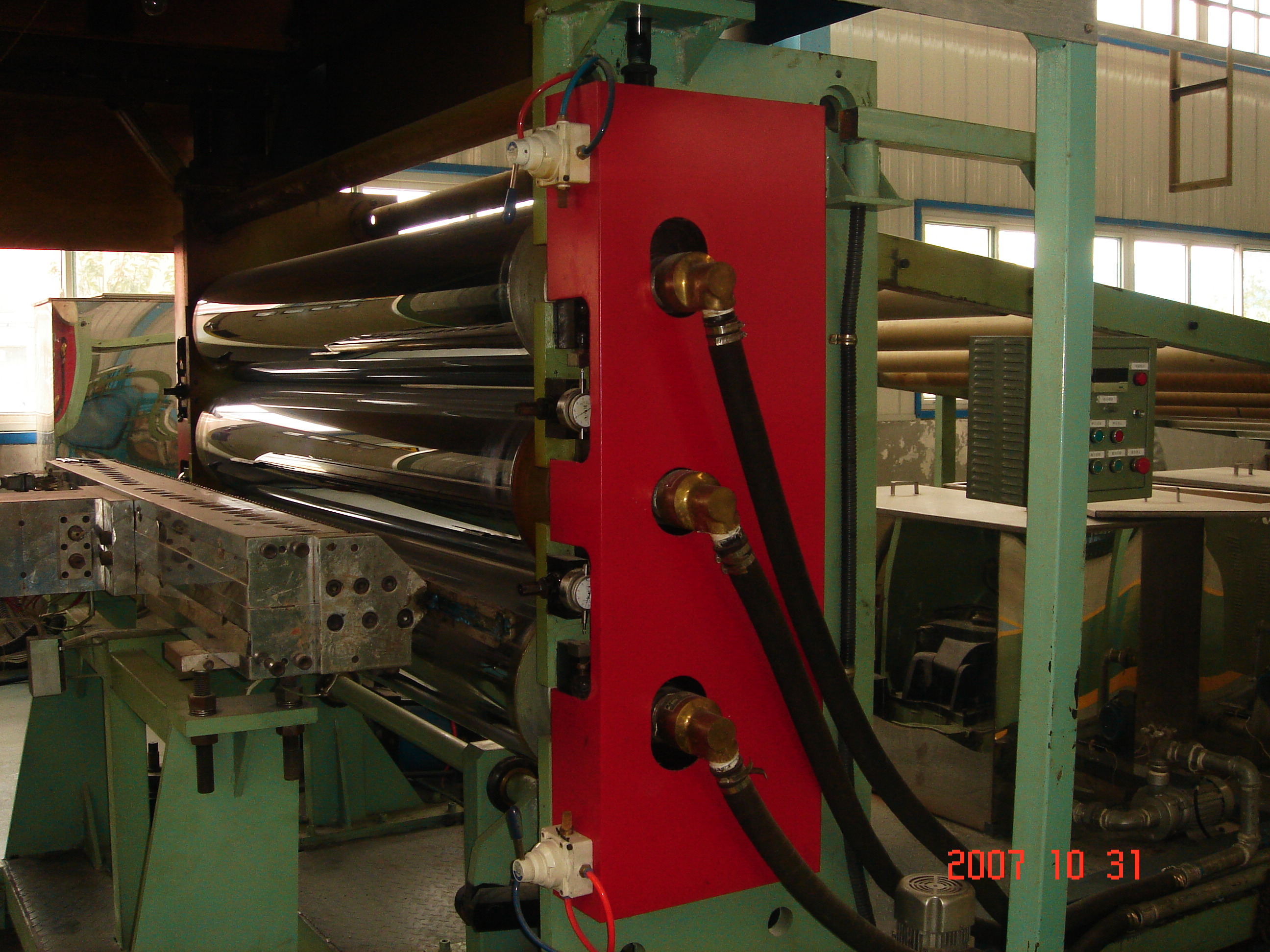

Mlding die with high quality alloy steel lips and restrict bars to ensure even pressure and uniform thickness of the finished sheet

Vacuum Calibrator convective heat with array interleaved to ensure high precise calibration the vacuum system composes two independent subsystem equipped with several closed loop vacuum lines which carries vacuum regulating system and vacuum displaying system to ensure stable and even vacuum degree of sheet surface

Haul off Device

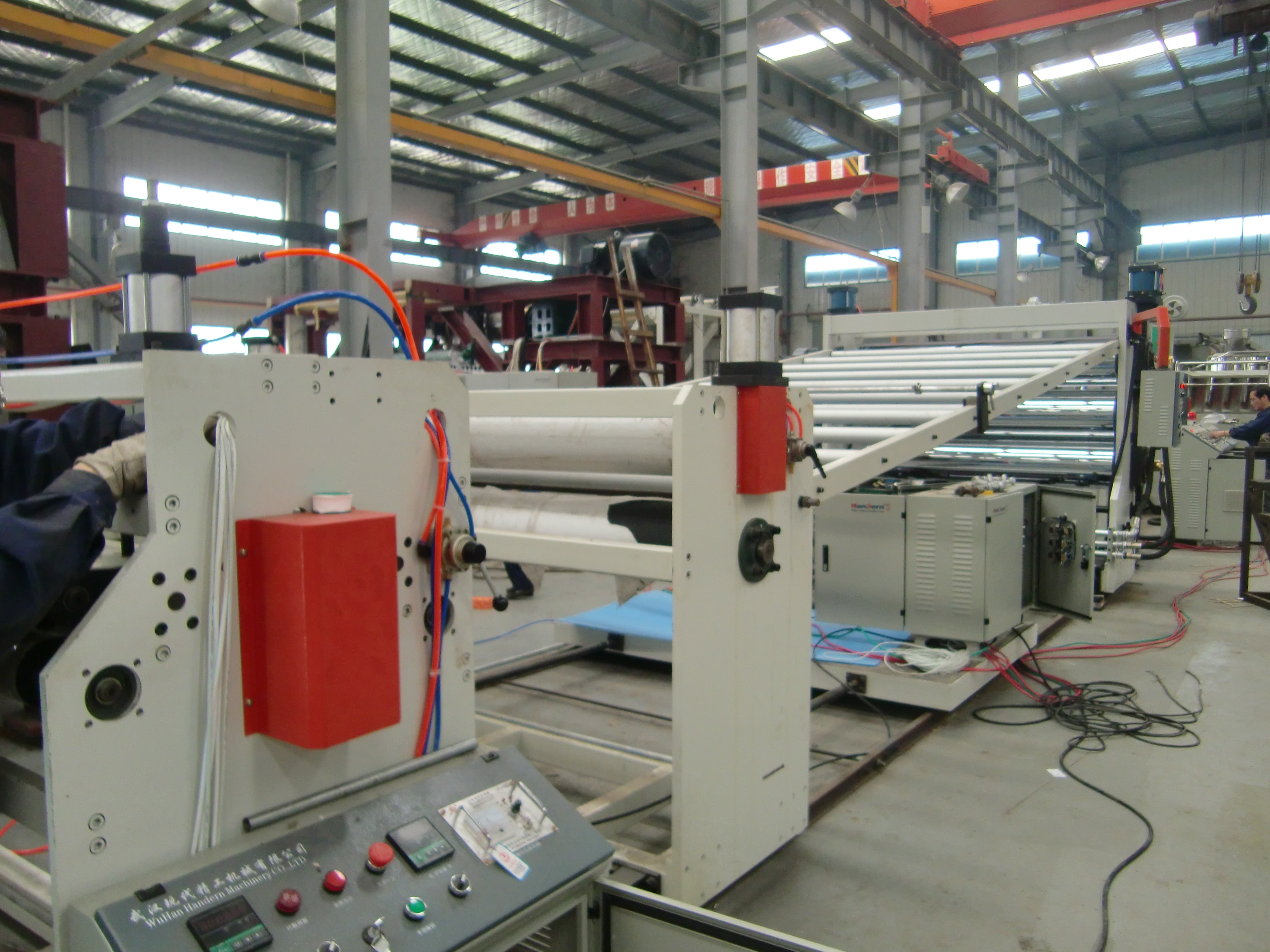

First haul off device is of high power high reduction gear ratio multi roll type high traction to draw the sheet up from calibrator evenly and synchronizedly

Second haul off device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting

Cutting Machine Accurate imported automatic length indicator adopts electric fly cutting and traversing cutting

Electrical control system adopt PLC to control precise parameters

Benefits of Polycarbonate hollow sheet making machine

1 Required high production efficiency

2 Production flexibility controllable sheet thickness and width for example you can produce 26mm thick sheet with the same mould or machine

3 Reliability and stability

4Excellent Adaptability to different raw material and reach over 30 production cost reduction

5 Size and shape diversity of finished products

Wuhan Handern Machinery CoLtd

Contact number WhatsappWechat 8613986280012

Website handernenalibabacom

Handern1688com

AddNo61 Yinbo RoadJinghe StreetDongxihuWuhanHubeiChina
