hollow grid board making equipment PP hollow grid board making equipment 2300mm hollow grid board making equipment
Product Details:
X
hollow grid board making equipment PP hollow grid board making equipment 2300mm hollow grid board making equipment Price And Quantity
- 1 Set
hollow grid board making equipment PP hollow grid board making equipment 2300mm hollow grid board making equipment Trade Information
- 10000.00
- 100 Set Per Year
- 45 Days
- Wooden case and plastic film
- All India
- CE ISO
Product Description
Hollow grid board making equipment PP hollow grid board making equipment 2300mm hollow grid board making equipment
Its performance is superior to that of calcium plastic corrugated board produced by traditional hot dip method and it has good economic benefitsThe unit has been exported to foreign countries and is well received by customers
Ordinary production line high speed production line S type hollow board production line rice type production line multilayer coextrusion hollow board production line V type hollow board
Specifications of Polycarbonate hollow sheet making machine
Machine type1400180023002700
Max sheet widthmm1250165021502550
Sheet thicknessmm26 612 152026 612 152026 61226 612
Line Speedmmin16 21016 21016 21016 210
Max outputkgh180260220350320450360500
Motor powerkw55907511090132110160
Screw ModelSJ10536SJ11036SJ12036SJ13536 SJ15036
Advantages of Polycarbonate hollow sheet making machine

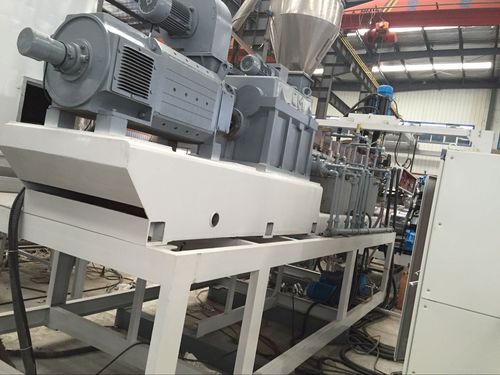

New design screw extruder line with market demands and adapt to many kinds of raw materials with the advantages of good plasticizing uniform distribution and high output
Hydraulic pressure screen exchange short course of changing screen and stable operation of operators

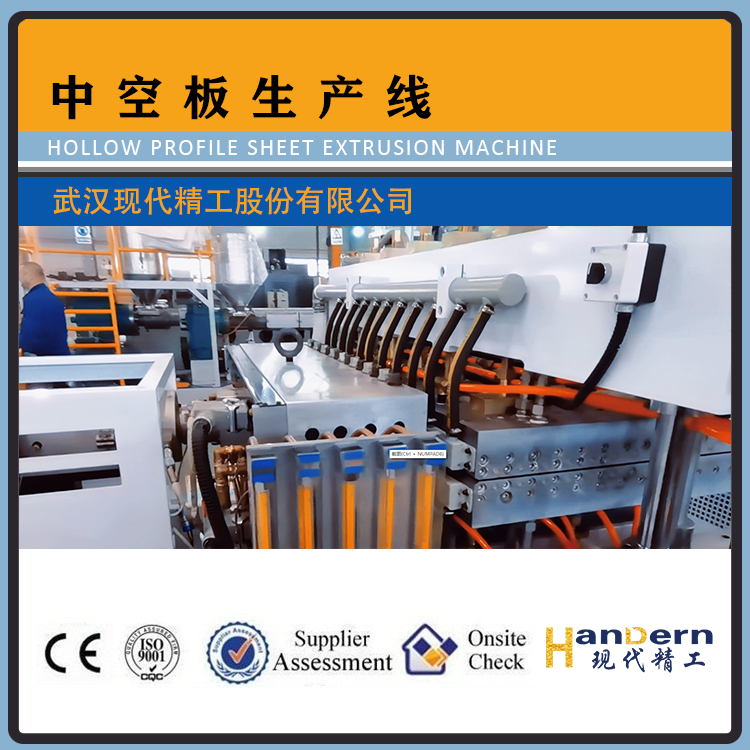

Mlding die with high quality alloy steel lips and restrict bars to ensure even pressure and uniform thickness of the finished sheet
Vacuum Calibrator convective heat with array interleaved to ensure high precise calibration the vacuum system composes two independent subsystem equipped with several closed loop vacuum lines which carries vacuum regulating system and vacuum displaying system to ensure stable and even vacuum degree of sheet surface
Haul off Device
First haul off device is of high power high reduction gear ratio multi roll type high traction to draw the sheet up from calibrator evenly and synchronizedly
Second haul off device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting

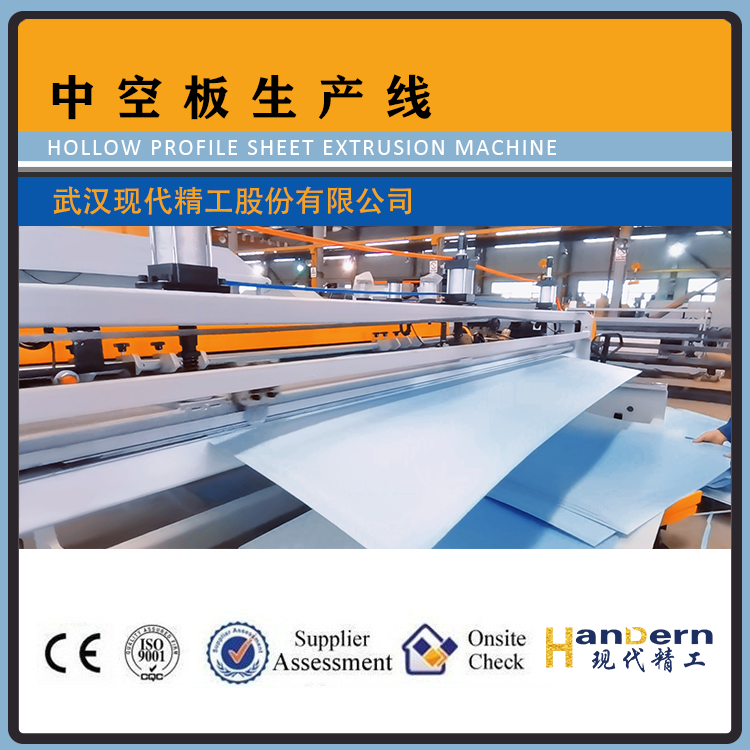

Cutting Machine Accurate imported automatic length indicator adopts electric fly cutting and traversing cutting

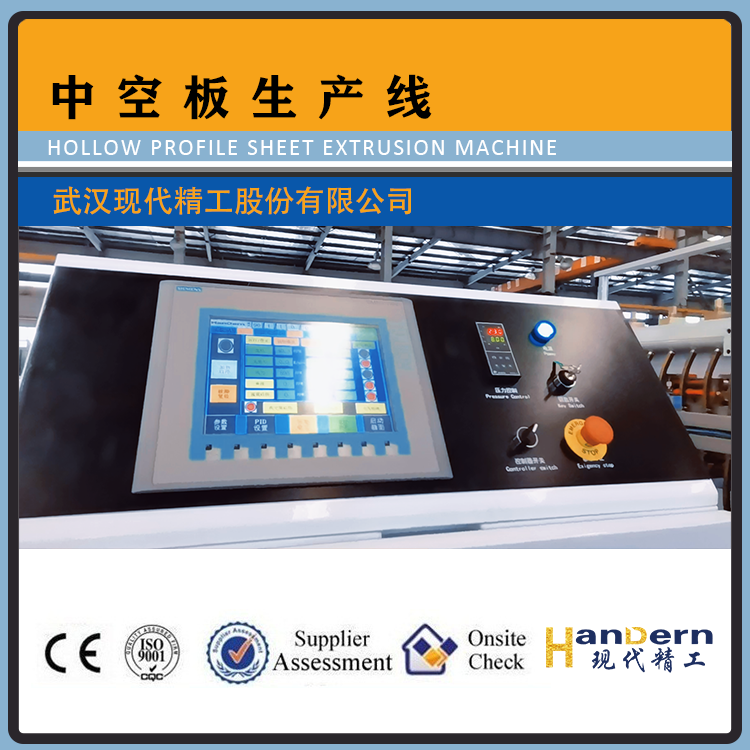

Electrical control system adopt PLC to control precise parameters
Benefits of Polycarbonate hollow sheet making machine
1 Required high production efficiency
2 Production flexibility controllable sheet thickness and width for example you can produce 26mm thick sheet with the same mould or machine
3 Reliability and stability
4Excellent Adaptability to different raw material and reach over 30 production cost reduction
5 Size and shape diversity of finished products
Wuhan Handern Machinery CoLtd
Contact number WhatsappWechat 8613986280012
Website handernenalibabacom
Handern1688com
AddNo61 Yinbo RoadJinghe StreetDongxihuWuhanHubeiChina
