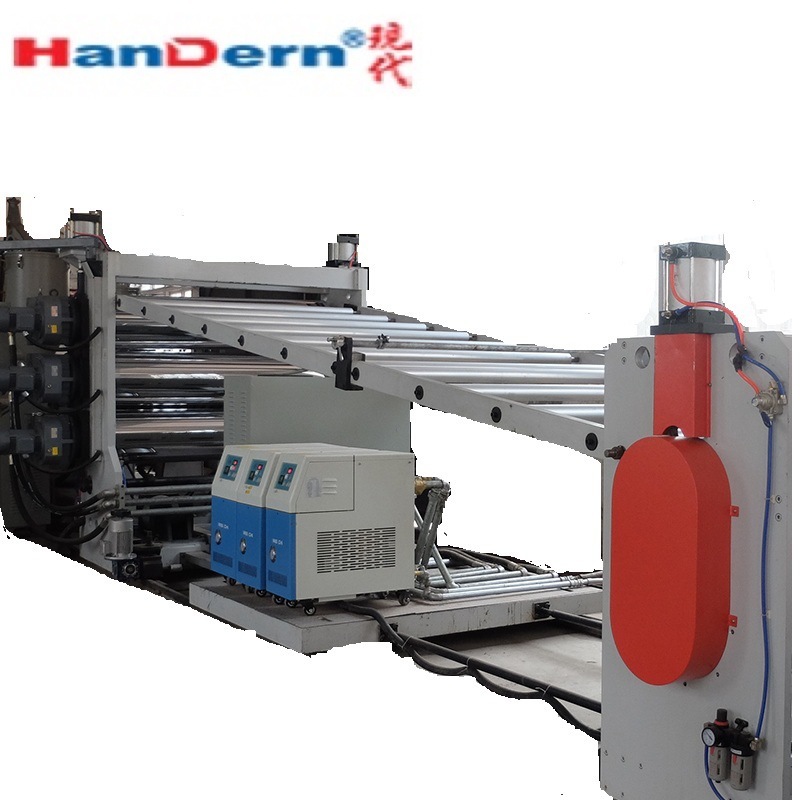

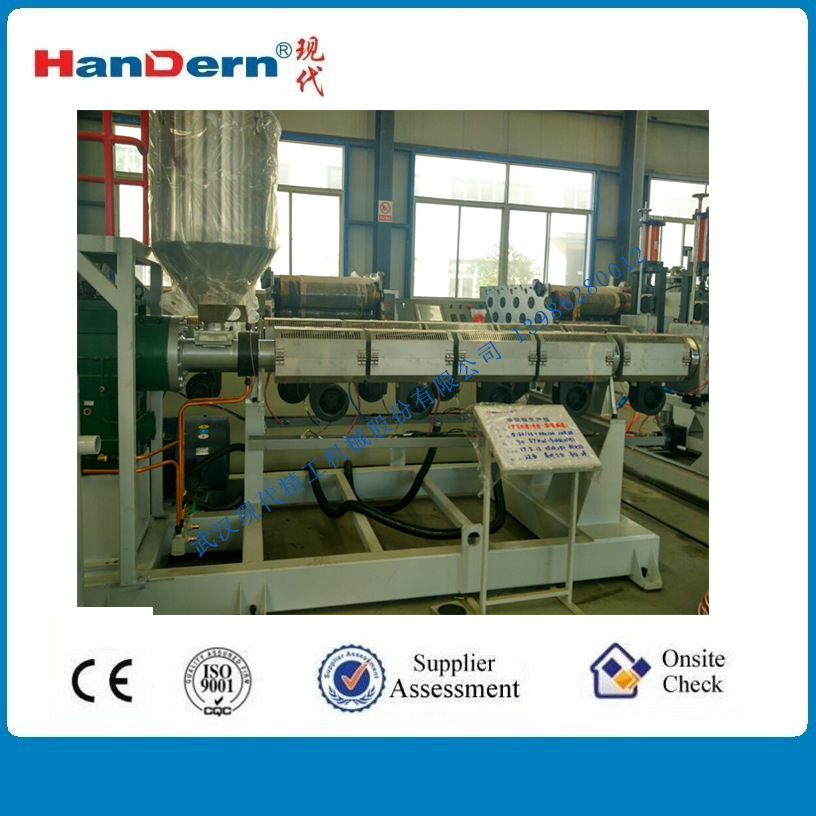

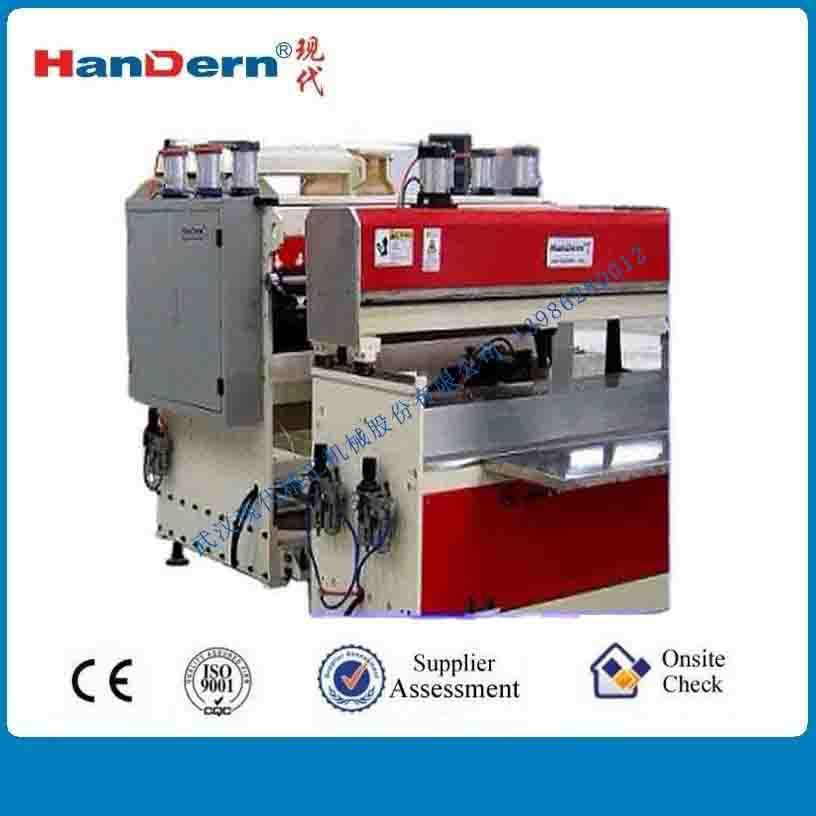

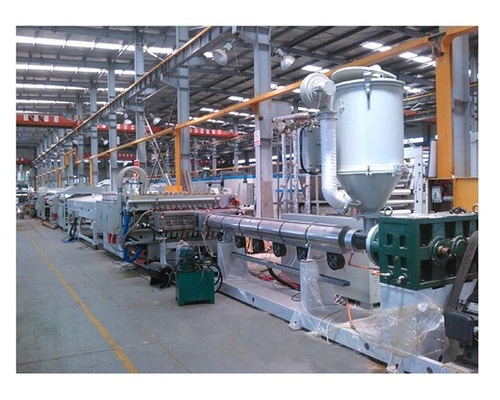

Hollow Board Making Machine
Product Details:
- Type Hollow Board Making Machine
- Material pp pc ps pet abs hips pmma
- Capacity 180~600 Kg/hr
- Computerized Yes
- Automatic Grade Automatic
- Control System PLC Control
- Dimension (L*W*H) 22*2*2.2 Meter (m)
- Click to View more
X
Hollow Board Making Machine Price And Quantity
- 1 Set
Hollow Board Making Machine Product Specifications
- pp pc ps pet abs hips pmma
- Automatic
- Yes
- customized
- 180~600 Kg/hr
- 22*2*2.2 Meter (m)
- PLC Control
- Hollow Board Making Machine
Hollow Board Making Machine Trade Information
- 100 Set Per Year
- 45 Days
- Contact us for information regarding our sample policy
- wooden cases and plastic film
- All India
- CE/C
Product Description
Application
3 Advertising Board advertising board, show board, brand mark,light box board
4 Industry Uses Protection board, padding board, luggage carrier,separating board, baseboard, cross board for all things
5 Construction Board Partition, protection board of wall, ceiling board
Specifications of Polycarbonate corrugated Sheet production line
Machine type1400 1800 2300 2700
Max sheet width(mm) 1250 1650 2150 2550
Sheet thickness(mm) 2-6 6-12 12-20 2-6 6-12 12-20 2-6 6-12 2-6 6-12
Line Speed(m/min 1-6 2-101-6 2-101-6 2-101-6 2-10
Max output(kg/h) 180-260 220-350 320-450 360-500
Motor power(kw)55-90 75-110 90-132 110-160
Screw Model SJ105/36 SJ110/36 SJ120/36 SJ135/36 SJ150/36
The configuration of machines can be CUSTOMIZED according to your needs!
Benefits of Polycarbonate corrugated Sheet production line1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products
Service:
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
100#PP hollow corrugated making machine,PP Hollow board making machine,PP fluted sheet making machine
200#PP hollow corrugated making machine,PP Hollow board making machine,PP fluted sheet making machine
300#PP hollow corrugated making machine,PP Hollow board making machine,PP fluted sheet making machine
400#PP hollow corrugated making machine,PP Hollow board making machine,PP fluted sheet making machine
500#PP hollow corrugated making machine,PP Hollow board making machine,PP fluted sheet making machine
600#PP hollow corrugated making machine,PP Hollow board making machine,PP fluted sheet making machine
700#PP hollow corrugated making machine,PP Hollow board making machine,PP fluted sheet making machine
800#PP hollow corrugated making machine,PP Hollow board making machine,PP fluted sheet making machine
