Plastic Sheet Making Machine

Product Description

Polycarbonate hollow sheet making machine is to produce PC hollow sheet

It can be used in many fields such as decorationadvertisement sunshine and noise insulation roofing packaging

Its performance is superior to that of calcium plastic corrugated board produced by traditional hot dip method and it has good economic benefitsThe unit has been exported to foreign countries and is well received by customers

Ordinary production line high speed production line S type hollow board production line rice type production line multilayer coextrusion hollow board production line V type hollow board

Specifications of Polycarbonate hollow sheet making machine

Machine type1400180023002700

Max sheet widthmm1250165021502550

Sheet thicknessmm26 612 152026 612 152026 61226 612

Line Speedmmin16 21016 21016 21016 210

Max outputkgh180260220350320450360500

Motor powerkw55907511090132110160

Screw ModelSJ10536SJ11036SJ12036SJ13536 SJ15036

Advantages of Polycarbonate hollow sheet making machine

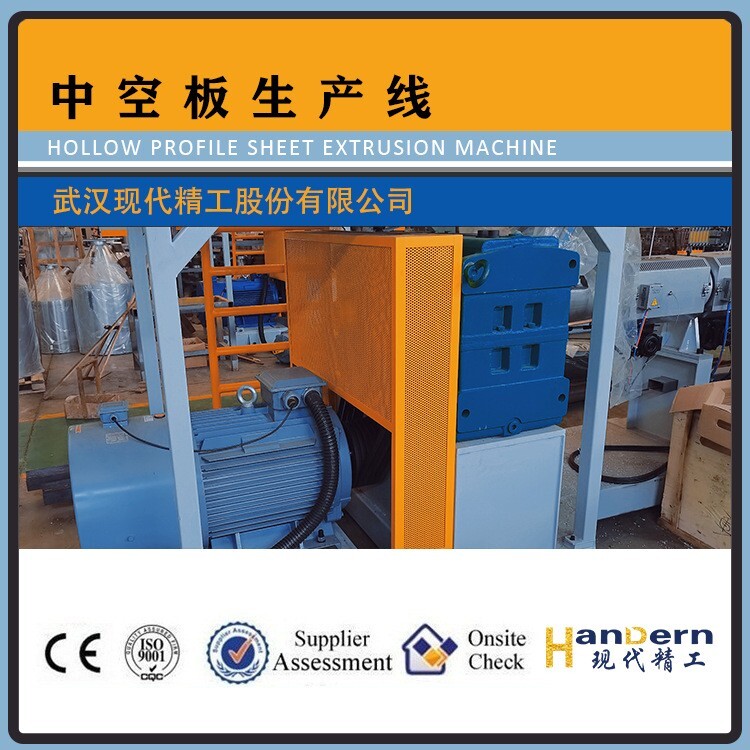

New design screw extruder line with market demands and adapt to many kinds of raw materials with the advantages of good plasticizing uniform distribution and high output

Hydraulic pressure screen exchange short course of changing screen and stable operation of operators

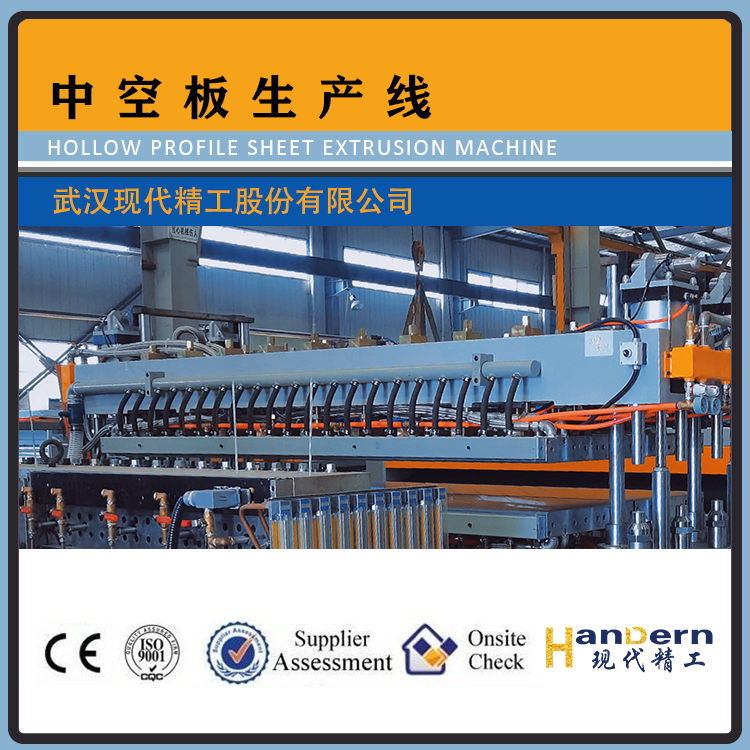

Mlding die with high quality alloy steel lips and restrict bars to ensure even pressure and uniform thickness of the finished sheet

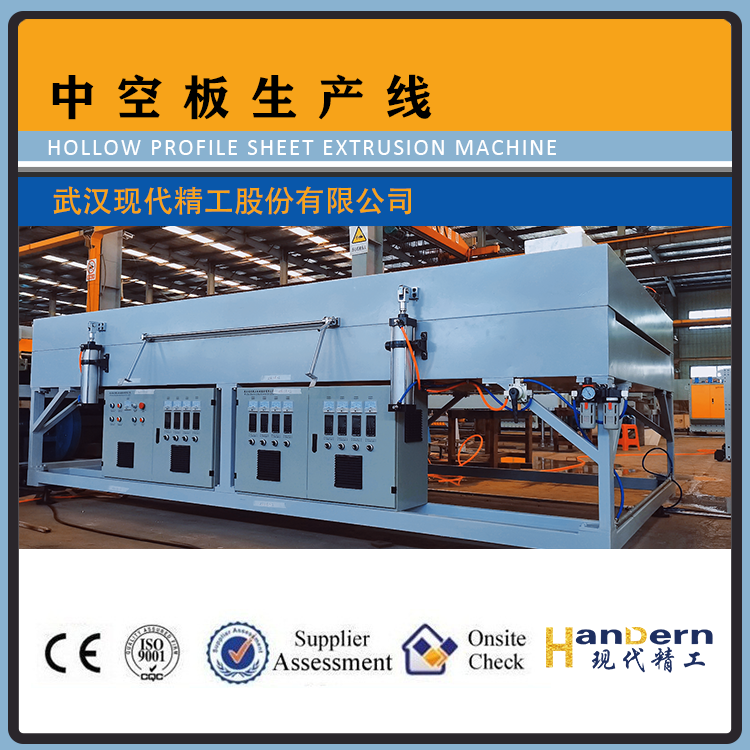

Vacuum Calibrator convective heat with array interleaved to ensure high precise calibration the vacuum system composes two independent subsystem equipped with several closed loop vacuum lines which carries vacuum regulating system and vacuum displaying system to ensure stable and even vacuum degree of sheet surface

Haul off Device

First haul off device is of high power high reduction gear ratio multi roll type high traction to draw the sheet up from calibrator evenly and synchronizedly

Second haul off device is to remove stress and equipped with edge cutting device to ensure effective width and smooth cutting

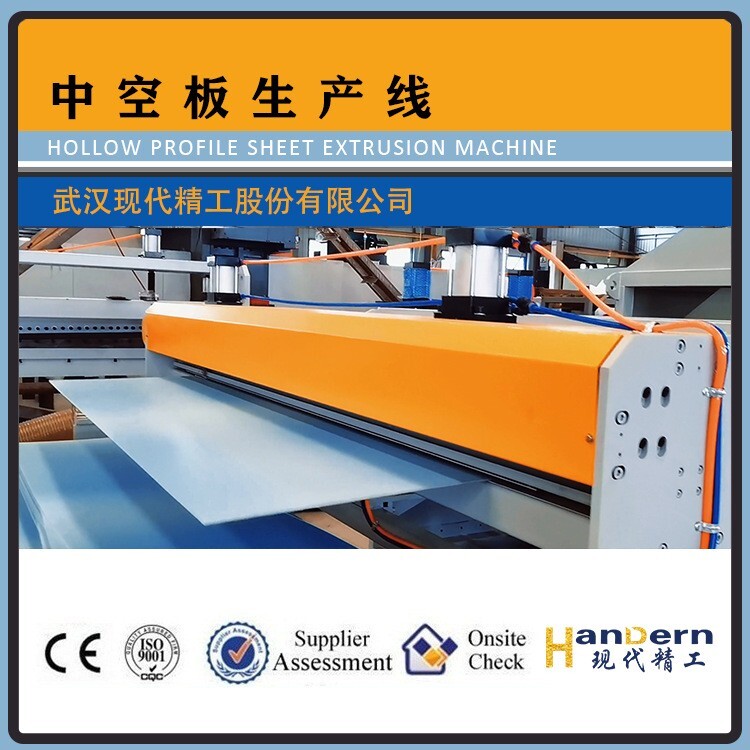

Cutting Machine Accurate imported automatic length indicator adopts electric fly cutting and traversing cutting

Electrical control system adopt PLC to control precise parameters

Benefits of Polycarbonate hollow sheet making machine

1 Required high production efficiency

2 Production flexibility controllable sheet thickness and width for example you can produce 26mm thick sheet with the same mould or machine

3 Reliability and stability

4Excellent Adaptability to different raw material and reach over 30 production cost reduction

5 Size and shape diversity of finished products
