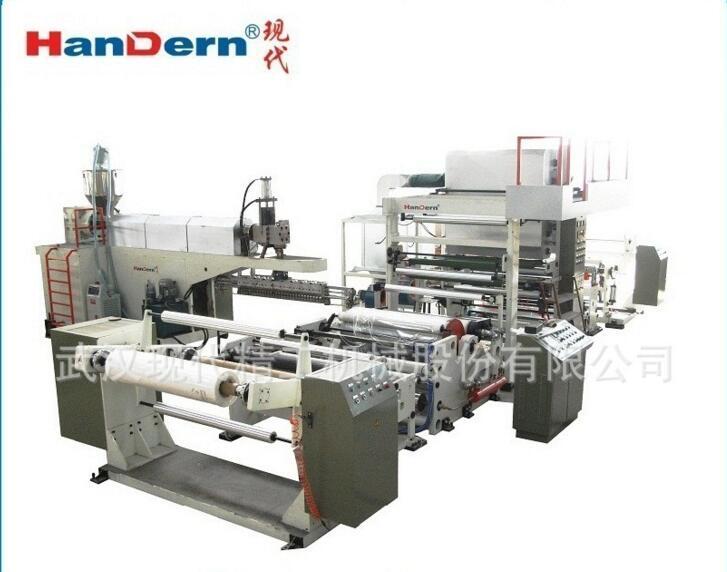

Extrusion Lamination Compound Machine High Speed Extrusion Lamination Compound machine

Product Description

Extrusion Lamination Compound machine High Speed Extrusion Lamination Compound

machine

Main equipment parameters

1, cylinder material bar:100mm, length to diameter ratio :32:1, material :38CrMoAl, quenching and tempering, surface nitriding, with mixing section, mixing function is good, discharge quantity is large;

2,T type elastic die: material : 38CrMoAl , after quenching and tempering treatment, has good toughness and hardness, high temperature frequent use without deformation (homemade);

3, Extruder reducer adopts airtight, reliable high strength hard tooth surface reducer;

4, Digital intelligent temperature control system;

5, the scope of application: 20GSM - 100GSM roll non-woven fabric and other soft substrate;

6, film raw materials :PE,PP;

7, film effective width :2000 - 2400mm;

8, film thickness :0.012 - 0.030mm (single layer);

9, film uniformity: error 8%

10, peel strength: 3 - 5N/30mm (according to the actual film substrate)

11, Max extrusion capacity :280kg/h;

12, design mechanical speed :0 - 100m/min;

13, double station unwinding, magnetic powder tension, unwinding MAX diameter 600mm;

14. Rewinding adopts rewinding method, rewinding automatically counts meters, rewinding MAX diameter 600mm;
